Scomi Screen

Scomi Prima 3G/4G/5G

Mesh Material: stainless steel 304/316/316 L.

Frame Material: Q235 steel.

Screen Type: XL, XR.

API RP 13C Designation: API 20 – AP.....

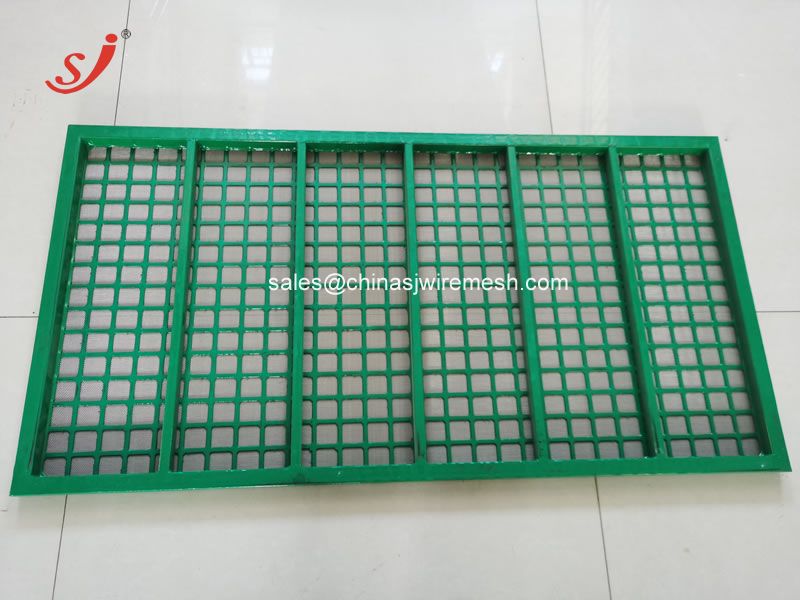

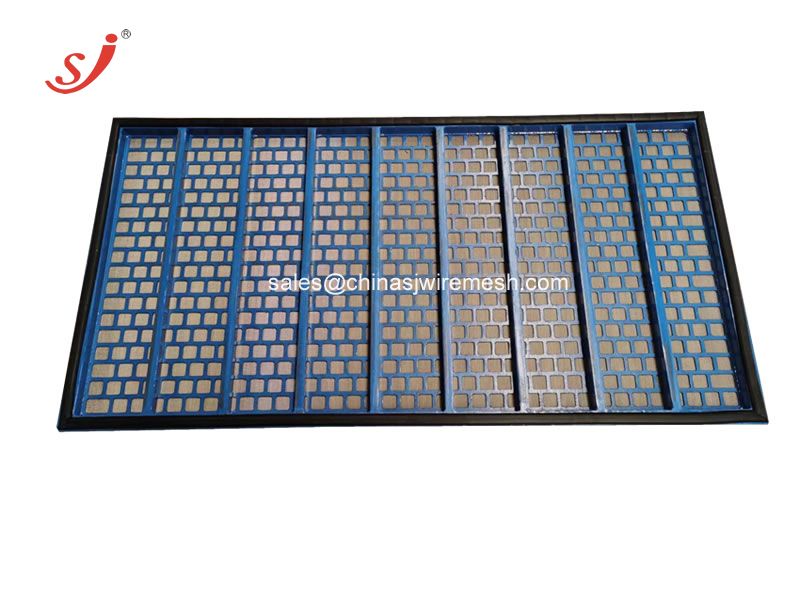

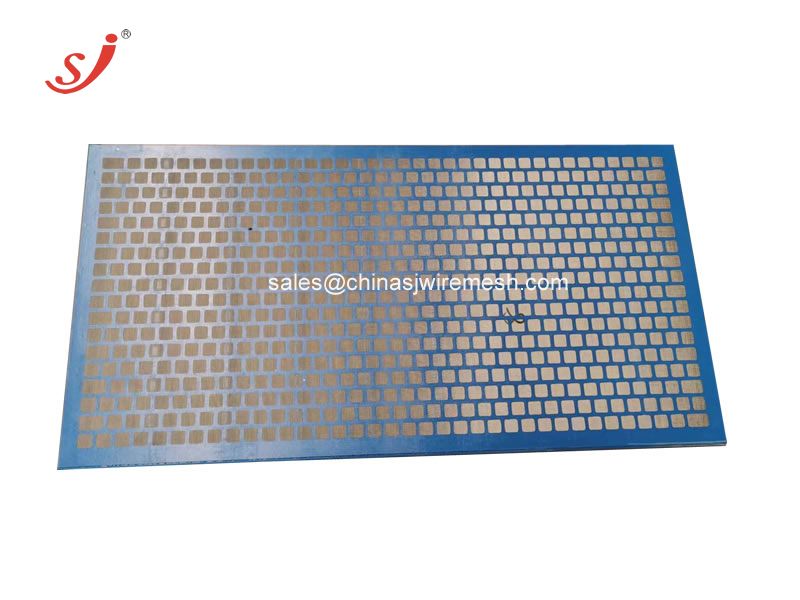

SJ-SG shaker screen, also commonly called Scomi prima 3G/4G/5G screen, refers to the replacement screen for Scomi Prima series shale shakers. The main shaker models are including SCM-PrimaG 3P/4P/5P linear motion shale shaker and SCM-PrimaG 4PDD cascading shale shaker. Screen quantity correspondingly varies by the different shaker models. The whole screen cloth is divided into independent small surfaces by rectangle perforated holes to prevent the part excessive expansive damaged.

Adaptable Shale Shaker Model

SJ-SG shaker screens are used as the substitute screen for:

  • SCM-PrimaG 3P linear motion shale shaker (3-panel).
  • SCM-PrimaG 4P linear motion shale shaker (4-panel).
  • SCM-PrimaG 4PDD cascading shale shaker (4-panel).
  • SCM-PrimaG 5P linear motion shale shaker (5-panel).
Competitive Advantage
  • 100% interchangeable with OEM brands screen panel size.

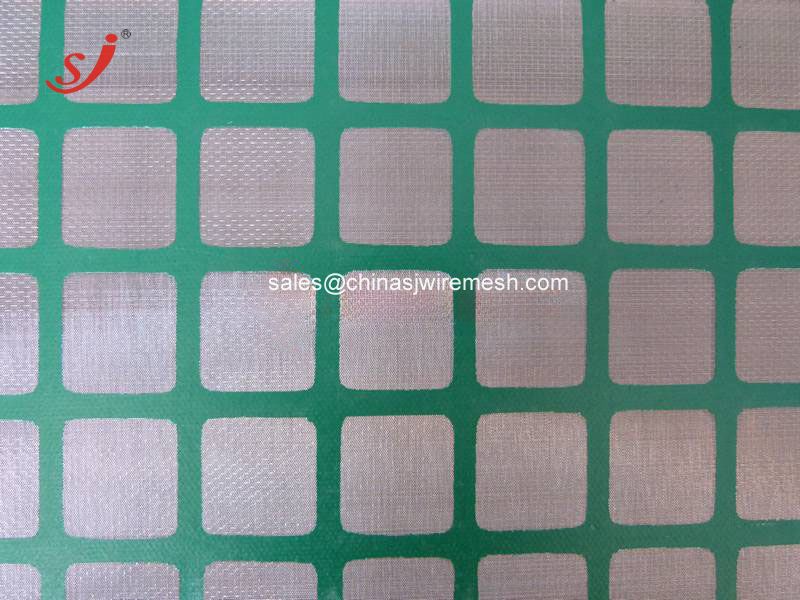

  • SS 304/316 wire mesh cloth, triple layered sandwich construction.
  • Bonded to perforated panel, rugged structural support.
  • Manufactured according to the API RP 13C (ISO 13501).
  • Scientific & reasonable cost control system for competitive price.
  • Adequate inventory in the shortest time to meet customers' demand.
  • Warranty Period: 1 year.
  • Working Life: 400-450 hours.

Performance Parameter

Screen DesignationAPI RP 13C DesignationConductance NumberD100 Separation (microns)Non-Blank Area (sq.ft)
SJ-SG-A325API 3250.3848.85.56
SJ-SG-A270API 2700.3953.85.56
SJ-SG-A230API 2300.5163.45.56
SJ-SG-A200API 2000.7177.85.56
SJ-SG-A170API 1700.8891.85.56
SJ-SG-A140API 1401.22114.65.56
SJ-SG-A120API 1201.48120.15.56
SJ-SG-A100API 1002.06142.55.56
SJ-SG-A80API 803.5517715.56
SJ-SG-A70API 704.71216.65.56
SJ-SG-A60API 605.87256.85.56
SJ-SG-A50API 506.62321.05.56
SJ-SG-A45API 456.72377.25.56
SJ-SG-A35API 357.96517.85.56
SJ-SG-A20API 209.01862.25.56
  • * D100: Particles this size and larger will normally be discarded.
  • * API: Corresponding API sieve equivalent as per API RP 13C.
  • * Conductance No.: This represents the ease with which a liquid can flow through the screen.Larger values represent higher volume handing.
